Thursday, May 30, 2013

This shot was with a 17mm Nagler at the eyepiece of my 13.1" F4.5.

Using a 27mm Panoptic.

Here's a couple of shots with my personal 13.1" F4.5 telescope using a hand-held point 'n shoot Nikon camera at the eyepiece.

Tuesday, May 28, 2013

A "point 'n shoot" camera shot of Saturn taken through Hitesh's 16" F4.5. You can just make out
Cassini's Division. Through the eyepiece, the image was excellent -- especially considering
the "seeing" this evening. All in all, a VERY nice telescope.

A 16" F4.5 truss telescope
16" F4.5 Truss Telescope for Hitesh D.
in Santa Clara California.

for Hitesh D in Santa Clara California is virtually complete. The primary and secondary are 1/16-wave JMI optics. The spider is an observatory grade Destiny curved-vane. The primary mirror sits on an 18-point flotation all aluminum mirror cell optimized with Plop.
An interesting feature is the Moonlite filter-slide seen under the Moonlite 2" 2-speed focuser. A Sky Commander digital setting circle is also installed.

18-point  flotation all aluminum mirror cell optimized with Plop.
Detail of the "mirror box" with eyepiece tray, Sky Commander, DSC
stalk and dew shield in place. A sliding counterweight helps
balance the telescope when eyepieces are changed.
The Destiny 3-vane curved-vane spider. The mirror
cover is on the lower right of the photo.

Moonlite filter-slide and 2" 2-speed focuser.

Monday, May 27, 2013

Rocker box for 12" Lightbridge.

Now complete and ready for packaging and shipping for Bob F in Ft. Myers Florida is a rocker box for a 12" Lightbridge telescope. Bob asked for a DSC (digital setting circle) stalk for his Sky Commander.

The entire assembly only weighs 20.5# and measures approximately 17"x17"x16" (to the bottom of the alt bearing "curve".

The DSC stalk (center support) measures 30".

Saturday, May 25, 2013

Hitesh's 16" F4.5 nears completion.

The 16" F4.5 for Hitesh in the Bay Area is near completion. Here, the scope has been placed in the rocker box to be sure of the fit and function. All is working well. I need to complete the ground board and some other final touches -- including the DSC stalk.

The dew shield and primary mirror are on the table just to the left.

So, stay tuned!!

Friday, May 24, 2013

The beginnings of a rocker box for a Lightbridge 12" telescope
for Robert F. in Ft. Myers, Florida.
Another view of the rocker box with the front and rear
spacers held in place with clamps.

Thursday, May 23, 2013

Progress is coming along nicely for Hitesh's 16" telescope. Here the rocker box is taking shape.

Wednesday, May 22, 2013

16" F4.5 for Hitesh in Santa Clara California.

Work continues on Hitesh's 16" F4.5 telescope. The truss OTA is completed. Note that the wood mirror cover is still in the varnish-drying stage and not installed. The removable dew shield is to the right of the photo.

Detail of the top ring, Moonlite 2-speed 2" focuser
and Filter Slide.

Note the "filter slide" under the Moonlite focuser. This allows up to 3 filters to be installed and swing into the field-of-view anytime the observer wishes to use one. The secondary hasn't been installed as yet.

Tuesday, May 21, 2013

My good buddy Paul R in the S.F. Bay Area
with his 12.5" telescope built from one of our kits.

Sunday, May 19, 2013

Mirror box made for Hitesh's 16" telescope.
Hitesh lives in Santa Clara California.

Construction continues on Hitesh's 16" F4.5 telescope.  The black "Truss blocks" are on the top ring. The removable dew shield is in place

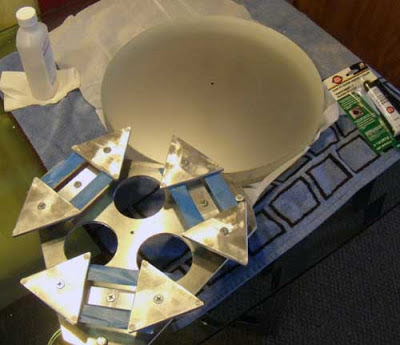

16" F4.5 mirror and 18-point flotation mirror cell for
Hitesh's telescope.

This is the 18-point mirror cell before  being attached to the rear of the mirror. You can see the black "dot" in the center of the mirror so the cell can be aligned correctly. The blue masking tape holds the cell components in place and will be removed. The mirror cell has  been optimized  with Plop and is made from 1/4" aluminum plate.

Monday, May 13, 2013

18-point flotation mirror cell for Brian's
17.5" F4.5 telescope mirror.

Photo of the mirror "box" for Brian's 17.5" F4.5 telescope. The mirror sits on an 18-point flotation mirror cell. The cell is all aluminum and has been optimized with Plop. The dew shield is removable for easy assembly and dis-assembly of the telescope.

"Mirror Box" for 17.5" F4.5 telescope. The blocks on the top
of the assembly are the Moonlite truss sockets.

Saturday, May 11, 2013

Upper Tube Assembly for 17.5" F4.5 telescope

I've been working on a 17.5" F4.5 for Brian in Dartmouth Nova Scotia, Here's a picture of the UTA (upper tube assembly). The telescope is coming along nicely.

Here you can see the Moonlite 2-speed, 2" focuser in place. The spider is an observatory grade curved-vane  Destiny.

The finder-board still needs to be added.

Monday, May 6, 2013

A 13.1" F4.5 for William in Novi Michigan.

Just completed is a 13.1" F4.5 with a Coulter primary and secondary mirror. The optics have new coatings and perform nicely under the stars. Note the Sky Commander and dew shield. The focuser is a nice 1-speed 2" crayford. A red dot finder is mounted on the top strut for aligning the Sky Commander.
This is the rear view of William's telescope. The mirror
cell is a hybrid of Baltic birch with an all aluminium
6-point flotation support system.
Mirror box, alt bearings and rocker box of the
13.1" F4.5 telescope

Detail of William's top ring, focuser, spider, Sky Commander
and Red Dot finder.

Saturday, May 4, 2013

Full kit for 15" F4.1 for Carl G. in San Diego Calaifornia.

Just completed today and ready for packaging and shipping is a 15" full kit for Carl G. in San Diego. Note the 18-point flotation mirror cell installed on the mirror board.
18-point flotation mirror cell installed on mirror board.
The rear of the mirror cell shows the optional counterweight
if it is needed to balance the optical tube assembly.
